GROUND THROW WITH CONTACT AND SELECTABLE END FITTINGS

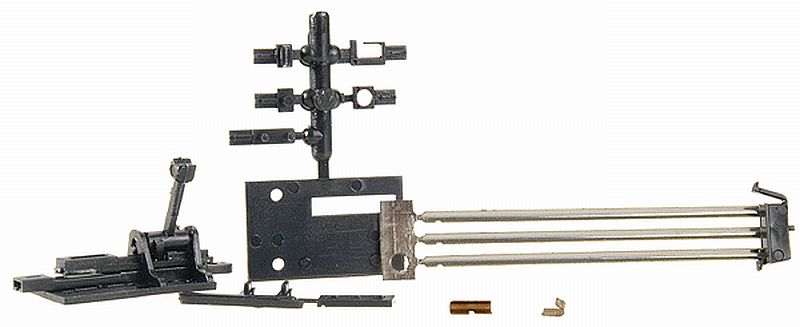

Slidebar travel of 0.165" makes these usable for both HO and N scale. The SPDT contact can be used to power a turnout frog, a signaling system, or a relay coil. A shim to raise the stand to tie level and five different end fittings to connect to most turnouts are provided. Hook end for ATLAS, blade for ROCO, hole for PECO, Sm. Rnd. pin for Micro Eng. and round pin for SHINOHARA and others.

All offer these advantages:

• Molded of strong, self-lubricating black delrin.
• External cam provides maximum life and travel.
• Cam design provides lock on both ends of the throw from 10? above horizontal to the extreme down position.
• Direct connection to the turnout through a pin on the slide bar.
• Detent to assist in holding the handle horizontal.

The 200S series are internally sprung stands. Stainless steel springs take up the overtravel and maintain tension to hold the movable points agianst the stock rails of the turn out. These springs make the machines easy to mount to the turnout.

 (224S per Caboose Industries)
