PROTOTYPE AND BACKGROUND INFO:

EMD F-units were a line of diesel-electric locomotives produced between November 1939 and November 1960 by General Motors Electro-Motive Division and General Motors-Diesel Division. Final assembly for all F-units was at the GM-EMD plant at La Grange, Illinois and the GMDD plant in London, Ontario, Canada. They were sold to railroads throughout the United States, Canada, and Mexico.

The EMD FP7 was a 1,500 horsepower (1,100 kW), B-B passenger-hauling diesel locomotive produced between June 1949 and December 1953 by General Motors’ Electro-Motive Division and General Motors Diesel. Final assembly was at GM-EMD’s La Grange, Illinois plant, excepting locomotives destined for Canada, in which case final assembly was at GMD’s plant in London, Ontario. The locomotive contained an auxiliary water tank and steam generator to supply steam heat to the trailing passenger cars. This necessitated a longer body and frame. Although intended for passenger service, these locomotive still were regularly assigned into freight locomotive pools as well.

F-Unit SERIES LOCOMOTIVE FEATURES:

• Coupler cut levers
• Windshield wipers
• Wire grab irons
• Trainline and MU hoses
• Lift rings
• Sanding lines
• Cab Interior
• Lit signal lights, beacons, and ditchlights, if equipped
• Bell placement & type per prototype
• Detailed Blomberg-B trucks with prototype-specific wheel bearings
• Directional constant lighting
• Headlight brightness remains constant
• Separately-applied photo-etched metal and injection molded detail parts
• Detailed fuel tank with fuel fillers, fuel gauges, breather pipes & retention tanks
• Speed recorder unless noted
• See-through cab windows and full cab interior
• Etched metal fan grilles
• Body-mounted McHenry scale knuckle couplers – Kadee compatible
• DCC-ready features Quick Plug plug-and-play technology with 21-pin NEM connector
• Scaled from prototype resources including drawings, field measurements, photographs, and more
• Accurately painted and printed paint schemes
• Genesis driveline with 5-pole skew wound motor, precision machined flywheels, and multi-link drivetrain
• All-wheel drive with precision gears for smooth & quiet operation
• All-wheel electrical pickup provides reliable current flow
• Wheels with RP25 contours operate on all popular brands of track
• LED Lighting for realistic appearance
• Heavy die-cast frame for greater traction and more pulling power
• Packaging securely holds for the model for safe storage
• Minimum radius: 18” — Recommended radius: 22”

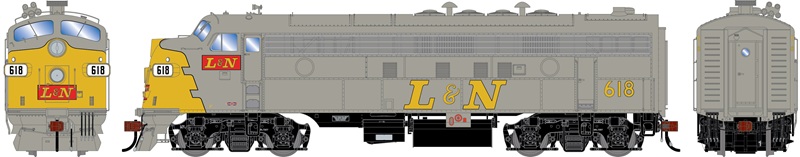

Louisville and Nashville

Built as passenger units, L&N’s diverse fleet of FP7s included units inherited from the CEI, as well as a pair of wreck rebuilds. By the 1960s, most of them were painted in the grey & yellow scheme and were re-geared for freight service.

LN FEATURES:

• RS5T horn
• Steam generator
• Extended MU hoses
• Nose MU receptacle
• Painted-over porthole windows per prototype practice
• Gyralight on nose (flash effect on DCC/sound version)
• Spark arrestors
• “Mushroom” cab vent
• “Whip” antenna
