PROTOTYPE SPECIFIC INFORMATION

The EMD GP15-1 is a 4-axle diesel-electric locomotive built by General Motors Electro-Motive Division between June 1976 and March 1982. Intended to provide an alternative to the rebuilding programs that many railroads were applying to their early road switchers, it is generally employed as a yard switcher or light road switcher. A total of 310 units were built for American railroads. A number of GP15-1s remain in service today for yard work and light road duty.



GP15 SERIES LOCOMOTIVE FEATURES:

• Operating Class Lights (DCC only) *If equipped

• Operating Number boards

• Coupler cut levers

• Trainline hose

• Full cab interior

• Windshield wipers

• Wire grab irons

• MU hoses

• See-through cab windows

• Walkway tread

• Lift rings

• Sander lines

• DCC-ready features Quick Plug plug-and-play technology with 21-pin NEM connector

• Fine-scale Celcon handrails for scale appearance

• Detailed fuel tank with fuel fillers, fuel gauges, & breather pipes

• Body-mounted McHenry operating scale knuckle couplers

• Genesis driveline with 5-pole skew wound motor, precision machined flywheels, and multi-link drivetrain for trouble free operation

• All-wheel drive with precision gears for smooth and quiet operation

• All-wheel electrical pickup provides reliable current flow

• Wheels with RP25 contours operate on all popular brands of track

• LED Lighting for trouble free operation

• Heavy die-cast frame for greater traction and more pulling power

• Scaled from prototype resources including drawings, field measurements, photographs, and more

• Accurately-painted and –printed paint schemes

• Fully-assembled and ready-to-run

• Packaging securely holds the model for safe storage

• Minimum radius: 18” — Recommended radius: 22”



SOUND-EQUIPPED MODELS ALSO FEATURE

• Onboard DCC decoder with SoundTraxx Tsunami2 sound

• Dual cube speakers for optimal sound quality

• Sound units operate in both DC and DCC

• Full DCC functions available when operated in DCC mode

• Engine, horn, and bell sounds work in DC

• All functions NMRA compatible in DCC mode

• Precision slow speed control

• Program a multiple unit (MU) lashup with lead unit only horn, bell, and lights

• Many functions can be altered via Configuration Value (CV) changes

• CV chart included in the box



LEGENDARY LIVERIES

What are Legendary Liveries? An Athearn exclusive, they are the ultimate answer to “What if?” Featuring some of the most popular railroad paint schemes of all time, these models are perfect for collecting, proto-freelancing, or just plain fun! Whether company proposed paint schemes, canceled locomotive orders, or alternate takes on history, Legendary Liveries are fun and unique additions to any roster. Enjoy these items, and answer the ultimate railroad question of: “What if?”





Larry’s Truck & Electric

Larry’s Truck and Electric is a large locomotive parts supplier and rebuilder based out of McDonald Ohio. They purchase locomotives second hand from railroads that deem them too expensive to repair, or want to upgrade to newer models. LTEX will in-turn, rebuild and lease these units back to power-needed railroads on a short-term or long-term basis. With a simple splash of fresh paint and initials on the long hood, they are leased where they are needed and could be found just about anywhere within the US. We are offering 3 different schemes to choose from.



LTEX FEATURES:

• Ex-CR

• Blunt style front anticlimber

• Blomberg B trucks

• Front and rear alternating flashing ditch lights (DCC only)

• Removed nose class lights

• Lit number boards

• Road number specific details



ROAD NUMBER SPECIFIC FEATURES:

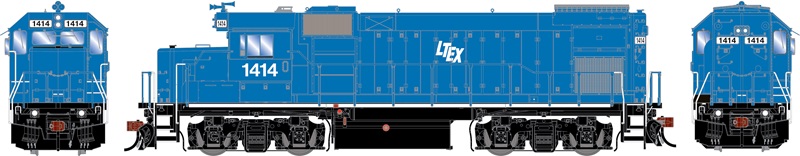

• #1414 Ex-CR #1634, Blue/Black scheme, front and rear small EMD plows, Nathan P-3 horn

• #1427 Ex-CR #1654, Red/Grey scheme, front and rear small EMD plows, Leslie 3-chime horn

• #1441 Ex-CR #1679, Orange/Green scheme, removed plows, Nathan K-3 horn mounted on long hood, cab mounted A/C
