PROTOTYPE AND BACKGROUND INFO:

By the early 1970s, many first generation diesels were reaching the end of their service lives. One of the most common replacement locomotives became the GP40-2. EMD began production of the 16-cylinder, turbocharged, 3000 horsepower engine in 1972. These locomotives were developed for service where higher horsepower and faster service were preferable. A major feature for the GP40-2 was the introduction of the “dash 2” modular electrical cabinet. For more than 40 years, the GP40-2 has worked main line freights, locals, switching jobs, yard service, and helper service. Many remain in service today.



GP40-2 SERIES LOCOMOTIVE FEATURES:

• Coupler cut levers

• Drop steps unless noted

• “Nub” style walkway tread

• Lift rings

• Walkway tread

• Trainline and MU hoses

• MU stands

• Windshield wipers

• Wire grab irons

• Sanding lines

• Lit number boards

• Lit class lights, if equipped

• Lit signal lights and/or beacons, if equipped

• Bell placement & type per prototype

• Detailed fuel tank with fuel fillers, fuel gauges, and breather pipes

• Blomberg-B or Blomberg-M trucks with appropriate bearing caps

• Speed recorder unless noted

• See-through cab windows and full cab interior

• Fine-scale Celcon handrails for scale appearance

• Etched metal fan grilles

• Air tanks mounted below sill unless noted

• Body-mounted McHenry scale knuckle couplers - Kadee compatible

• DCC-ready features Quick Plug plug-and-play technology with 21-pin NEM connector

• Scaled from prototype resources including drawings, field measurements, photographs, and more

• Accurately painted and printed paint schemes

• Genesis driveline with 5-pole skew wound motor, precision machined flywheels, and multi-link drivetrain

• All-wheel drive with precision gears for smooth & quiet operation

• All-wheel electrical pickup provides reliable current flow

• Wheels with RP25 contours operate on all popular brands of track

• LED Lighting for realistic appearance

• Heavy die-cast frame for greater traction and more pulling power

• Packaging securely holds for the model for safe storage

• Minimum radius: 18”



SOUND-EQUIPPED MODELS ALSO FEATURE

• Onboard DCC decoder with SoundTraxx Tsunami2 sound

• Dual cube speakers for optimal sound quality

• Sound units operate in both DC and DCC

• Full DCC functions available when operated in DCC mode

• Engine, horn, and bell sounds work in DC

• All functions NMRA compatible in DCC mode

• Precision slow speed control

• Program a multiple unit (MU) lashup with lead unit only horn, bell, and lights

• Many functions can be altered via Configuration Value (CV) changes

• CV chart included in the box



PRIMED FOR GRIME MODELS FEATURE

• Duplicated look and feel of “In Service” equipment

• Faded base colors matched to the prototype

• Perfect starting point for adding grime and rust



Denver and Rio Grande Western

After the 1988 merger of Rio Grande and SP, many locomotives were modernized. During the 1990s, ditch lights were added to locomotives for added visibility in grade crossings. While keeping their nose-mounted gyralights, front ditch lights and cab beacons were added to many Rio Grande units. By the late 90s, the gryalights and beacons were removed.



DRGW FEATURES:

• Early body with Chickenwire grilles

• Lit number boards and class lights (effect in DCC)

• Cab Beacon (effect in DCC)

• Front Ditch lights

• Nathan P3 horn mounted on long hood

• Small EMD front plow



ROAD NUMBER SPECIFIC FEATURES:

• #3100 Silver gyralight bezel, Rio Grande logo on nose, no cab vent

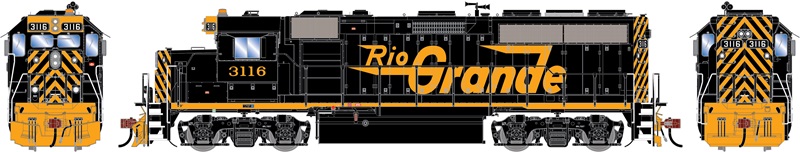

• #3116 Silver gyralight bezel, no Rio Grande logo on nose, cab vent on right side

• #3121 Black gyralight bezel, Rio Grande logo on nose, cab vent on right side
