PROTOTYPE AND BACKGROUND INFO:

In 1949, EMD introduced the GP7. The basic design followed most diesel switchers with the addition of a short hood instead of an end-cab. The hoods were also full height to better accommodate the diesel engine and mechanical and electrical components.

In 1954 EMD upgraded the GP7 to become the 1,750 horsepower GP9. Externally, the first GP9s were virtually unchanged from the last GP7s. Later versions would include different louver arrangements and the last ones would come without the frame skirting. The GP9 was available with all of the fuel tank, steam generator, and dynamic brake options as the GP7, including “torpedo tube” air tanks mounted on the roof.

Many railroads chose to rebuild their GP7s and GP9s for continued service. Often times, it was cheaper to do this rather than purchasing brand-new locomotives.



GP7 SERIES LOCOMOTIVE FEATURES:

• Coupler cut levers

• Drop steps unless noted

• “Nub” style walkway tread

• Lift rings

• Windshield wipers

• Trainline and MU hoses

• MU stands

• Windshield wiper

• Wire grab irons

• Sander lines

• Bell placement & type per prototype

• Detailed fuel tank with fuel fillers, fuel gauges, breather pipes, and retention tanks

• Blomberg-B trucks with appropriate bearing caps

• Speed recorder unless noted

• See-through cab windows and full cab interior

• Fine-scale Celcon handrails for scale appearance

• Etched metal radiator intake grilles and fan grilles

• Air tanks mounted below sill unless noted

• Body-mounted McHenry scale knuckle couplers – Kadee compatible

• DCC-ready features Quick Plug plug-and-play technology with 21-pin NEM connector

• Scaled from prototype resources including drawings, field measurements, photographs, and more

• Accurately painted and printed paint schemes

• Genesis driveline with 5-pole skew wound motor, precision machined flywheels, and multi-link drivetrain

• All-wheel drive with precision gears for smooth & quiet operation

• All-wheel electrical pickup provides reliable current flow

• Wheels with RP25 contours operate on all popular brands of track

• LED Lighting for realistic appearance

• Heavy die-cast frame for greater traction and more pulling power

• Packaging securely holds for the model for safe storage

• Minimum radius: 18”



SOUND-EQUIPPED MODELS ALSO FEATURE

• Onboard DCC decoder with SoundTraxx Tsunami2 sound

• Dual cube speakers for optimal sound quality

• Sound units operate in both DC and DCC

• Full DCC functions available when operated in DCC mode

• Engine, horn, and bell sounds work in DC

• All functions NMRA compatible in DCC mode

• Precision slow speed control

• Program a multiple unit (MU) lashup with lead unit only horn, bell, and lights

• Many functions can be altered via Configuration Value (CV) changes

• CV chart included in the box



PRIMED FOR GRIME MODELS FEATURE

• Duplicated look and feel of “In Service” equipment

• Faded base colors matched to the prototype

• Perfect starting point for adding grime and rust

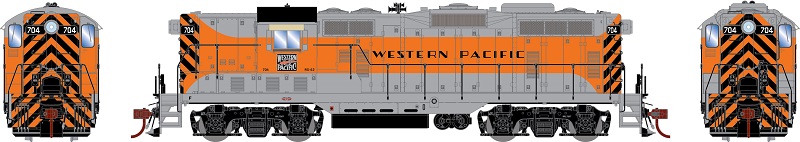

Western Pacific

When the Western Pacific purchased their first GP7’s in 1952 they became the first Western Class I railroad to fully dieselize their locomotive fleet. With a number of F7’s already in use on the railroad, the WP looked to the GP7 as a more versatile choice to expand its diesel roster and get the last of their steam locomotives off the rails. Since the GP7 was nearly identical mechanically to the F7s it was a logical next step and an attractive advantage to the budget-minded WP. The railroad took delivery of nine GP7 units in 1952, and an additional four in 1953. With this, the days of steam on the WP were over, and a new chapter of railroading in the Feather River Canyon began!



WP FEATURES:

• Dynamic brakes

• Full skirting

• Pyle National “Barrel” style headlights

• Canvas style sunshades

• High MU Stands
