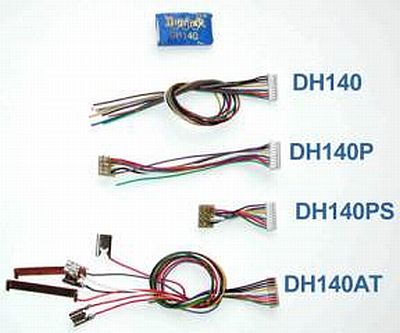

The DH140 is a basic mobile DCC decoder with a nine pin socket and wiring harness with bare wire ends for use with many locomotives. It is a 1 Amp / 1.5 Amp Peak decoder. This model has been discontinued and the new equivalent is the DH163D

Features:

• Easy connect decoder wire harness
• Supports Both Short (127) & Long (10,000) Address Modes
• User Programmable Address, Acceleration, Deceleration,
  Start-voltage & Mid-point voltage and more
• Programmable from DCC compatible equipment without opening the loco
• Smooth conversion to analog operation with functions operational
• 4 User Configurable, Independent Function Leads Rated at 200ma
  Use These as Regular Function Leads or Generate Special Lighting Effects
  Choose from Mars, Gyralite, Single or Double Strobe, Ditch Lights and more
• Smooth locomotive speed control with user selectable
  14, 28, or 128 forward & reverse speed step capabilities
• User loadable speed tables for customized speed control
  with 128 speed step resolution
• Supports Basic, Advanced & Universal Consisting
• User configurable loco direction of travel, you decide
  which way is forward without rewiring the motor
• Run AC motors (like Marklin 3 pole AC motors) on DCC with split field AC drive
• Automatic thermal overload shutdown & improved motor short circuit protection
• Compatible with the NMRA DCC Standard
