All Operator Freight Cars Feature

• Fully assembled

• Multiple road numbers

• Simplified underbody brake rigging details

• Body mounted semi-scale knuckle couplers

• Simplified printing and lettering legible even under magnification

• Accurately profiled .110″ wide wheel tread

• Weighted to Industry standards

• Operates on Code 70, 83 and 100 rail

• Packaging safely stores model

• Color matched to Tru-Color Paint colors whenever possible



Prototype Specific ScaleTrains

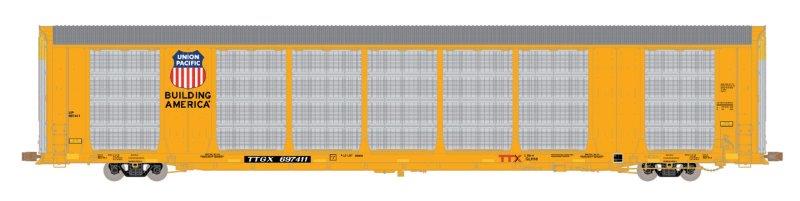

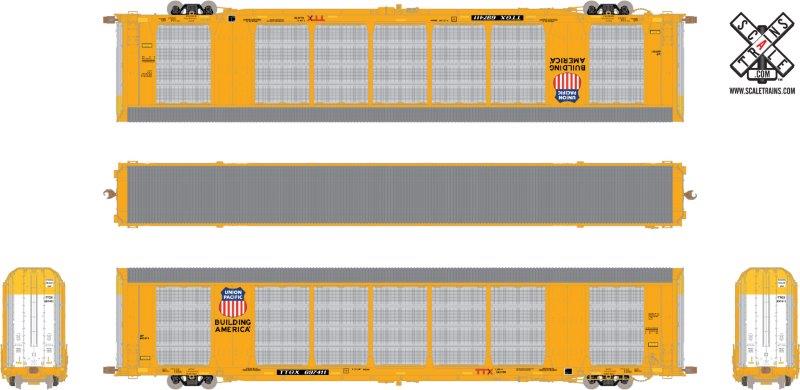

UP/Building America/TTGX

• Era: 2018 to Present

• Built 8/18 to 10/18

• Paint matches Tru-Color Paint color: body TCP-089 light imitation gold

• All new model

• Multiple road numbers

• Car rack numbers and ARR rack clearance data is specific to each car number

• Late body type

• Upper side panel mounting with three outside mounting tabs and no strip

• Lower side panel mounting with four lower recessed tabs and ¾ width strip

• 14 finely molded corrugated side panels

• Three main bodies of rack mounting holes in painted side panels

• Late end doors with “zig-zag” angle panels

• End sill steps

• Low mounted side ladders

• Outside side sill brake cylinder and brake beam mounting brackets

• Outside side sill brake rod support brackets

• All-new ASF Low deck swing motion trucks

• 28” machined metal wheels

• Separate brake cylinder/slack adjuster assembly, air reservoir, and control valve

• Paint matches Tru-Color Paint color: roof TCP-354 galvanized steel

• Detail kit available separately: includes door rods, metal grab irons, coupler cut levers, trainline hoses, and more (SXT81270)

• Minimum radius 24”

• Recommended radius 26”



Order Due Date: June 19, 2020

Anticipated Delivery Date: July 2020
