The ScaleTrains.com Tier 4 GEVo diesel locomotive is the first model in HO scale and is officially licensed by GE. We worked closely with GE Transportation to ensure every dimension and detail of this modern locomotive is as accurate as possible.

Prototype History

Introduced in 2012, General Electric's Tier 4 GEVo Series represents the latest in diesel-electric locomotive technology. The GE Tier 4 GEVo is designed to meet increasingly stringent Environmental Protection Agency (EPA) emissions regulations.

The EPA “Tier” emissions standards are a series, or Tiers, of allowable emissions levels based upon a locomotives’ date of manufacture. The highest and most stringent tier level, Tier 4, sets maximum allowable NOx and hydrocarbon emissions levels for locomotives built for domestic use 2015 onward.

While similar in appearance to previous GE GEVo designs, the Tier 4 models featured a longer frame compared to their predecessors. This allows for a larger radiator “cab” (GE refers to the various sections of the long hood as “cabs”), and a "hump" over the engine cab for advanced exhaust treatment equipment.

Initially, a boxy housing filled the entire roofline on the blue-painted field test/demonstrator units. Due to changes in treatment equipment and clearance issues, the "hump" would decrease in size and shape into a boxy compartment around the exhaust on initial production units. This culminated in an angled compartment surrounding the exhaust manifold on the latest production versions (2016+).

Despite boxier engine cab rooflines and a radically styled radiator cab, the basic Tier 4 design shares a family appearance with GE safety cab-equipped units going back to the DASH-9s of the 1990s. It even includes the same 12-cylinder GEVo-12 series prime mover and 4,400hp as its predecessor model.

The Tier 4 units have proven to be popular with the major railroads including BNSF Railway, Canadian National, CSX Transportation, Kansas City Southern, Norfolk Southern, and Union Pacific. While GE has settled on a basic carbody design to keep production costs down, there are notable variations and detail differences due to customer specifications.

With many units built for railroads across the US and in Canada, the Tier 4 GEVo can be seen operating nationwide in a variety of assignments.

The HO Scale Tier 4 GEVo is made under trademark license from General Electric Transportation.

Rivet Counter Tier 4 GEVo ET44 Locomotives Also Feature

• Fully-assembled
• Six (6) different road numbers
• Directional LED headlights
• Printed and LED lighted number boards
• Tread plate on walkways
• Detailed cab interior with separate floor, rear wall, seats, control stand, and crossing grade camera
• Tinted cab side windows
• Etched metal see-through dynamic brake intake grilles with blower motors visible inside
• See-through dynamic brake exhaust
• Separate exhaust stack
• 40 individually applied etched metal see-through radiator intake and exhaust grilles on sides and top of radiator compartment
• Accurately profiled frame with separately applied plumbing and cabling
• 5,300 gallon fuel tank with external waste retention tank
• Factory-applied wire grab irons, snowplow, spare knuckles, trainline hoses, 3-hose MU clusters, uncoupling levers, windshield wipers, mirrors, sunshades, air tanks, fuel tank mounted electronic bell, brake wheel and more.
• Semi-scale coupler buffer equipped with ScaleTrains.com durable metal semi-scale E Type knuckle couplers
• All-wheel drive
• All-wheel electrical pick-up
• Dual flywheels
• Motor with 5-pole skew wound armature
• Printing and lettering legible under magnification
• Operates on Code 70, 83, and 100 rail
• Packaging safely stores model
• Minimum Radius: 18”
• Recommended Radius: 22”

DCC & sound equipped locomotives also feature:

• ESU-LokSound 5 decoder with “Full Throttle”
• Dual cube-type speakers
• Accurate GEVO-12 prime mover and auxiliary sounds, horn, bell, and more
• ESU PowerPack with two super capacitors
• Operates on both DC and DCC layouts*

DCC & sound ready locomotives also feature:

• DC
• DCC ready with 21-pin connector

* Not all sound and lighting functions on DCC and sound equipped versions are operable using DC

Road Number Specific ScaleTrains

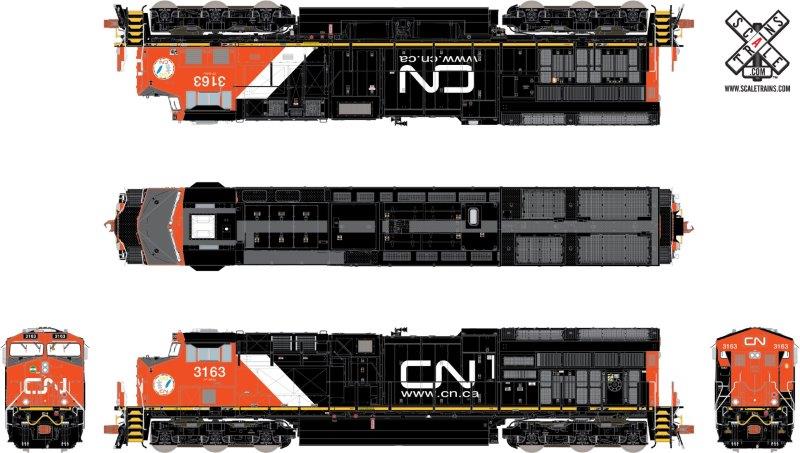

Canadian National ET44AC/Aboriginal Affairs

4^th run road numbers (announced August 2019): 3163, 3165, 3174

• Era: series 3163-3172, built 2018
• Era: series 3173-3222, built 2019
• Aboriginal Affairs logo on both sides of cab
• Current production engine cab (long hood) with angled exhaust compartment roofline
• Front and rear operating red LED DPU marker lights*
• Front and rear deck-mounted operating LED ditch lights*
• Canadian-style walkways with etched metal see-through slotted grating
• See-through Canadian-style “slotted” stepwell steps
• Rear Canadian “rock pilot”
• Cab roof antenna domes
• Narrow front and rear end handrail profile
• Nose door without window
• Single fuel fill per side
• Trucolor Paint: TCP-35 CN Red/Orange

Order Due Date: September 16, 2019

Anticipated Delivery Date: October 2019
