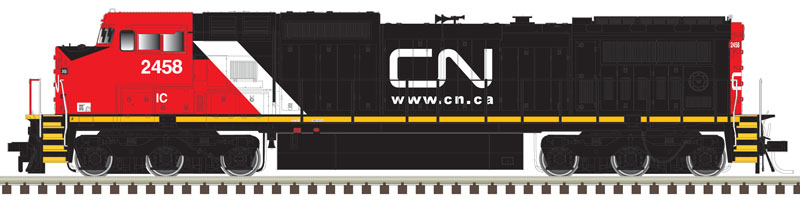

Atlas - HO Scale - GE Dash 8-40CW - DCC w/Sound - Canadian National (CN) #2458 - Black/White/Red/Yellow URL w/IC Reporting Marks Scheme (SKU 150-10003134)

Available On: August 1, 2020

First built for Union Pacific in the late 1980's by General Electric, the DASH 8-40C diesel locomotives were identified by an enlarged exhaust stack and the mounting of the dynamic brake grids in a square-like unit behind the cab, which housed an enlarged equipment blower fan. These six-axle, 4,000 hp engines are still in service today in North America.

The 4,000hp Dash 8-40CW was produced by General Electric between 1989 and 1993 as a follow-up to the successful Dash 8-40C locomotive. The most distinguishing feature of this model was the introduction of GE’s version of the wide-nose “North American Safety Cab.” This style of cab would become a common sight on railroads across the country. Four major railroads purchased the Dash 8-40CW in fairly large quantities, including Conrail, CSX, Santa Fe and Union Pacific. Most of these units are still in regular mainline and heavy-haul freight service today. Due to various mergers, they can also be seen operating for new owners Norfolk Southern and BNSF.

Features:

  • Ditch lights (8-40CW only)
  • Number boards, sand fill hatch, and marker lights where appropriate by railroad (8-40CW only)
  • Realistic die-cast underframe
  • Factory equipped with AccuMate knuckle couplers
  • Coupler pocket designed to accept AccuMate Proto-couplers
  • Highly detailed coupler cut bars
  • Multiple unit hoses and trainline hoses
  • Five-pole skewed armature motor with dual flywheels for optimum performance at all speeds
  • Separately installed scale windshield wipers, metal grab irons and fine scale handrails
  • Directional lighting
  • Painted crew members
  • Snowplow and piping on trucks
  • Recommended minimum radius: 22”

DCC w/Sound Unit Features:

  • Supports all DCC programming modes
  • Flexible mapping of function keys F0 to F28
  • A total of six DCC function outputs are available
  • Follows all NMRA DCC standards and recommended practices
  • The LokSound Select Dual-Mode decoder allows Atlas Gold Series locomotives to be used on DC as well as on DCC layouts
  • Please note that the Atlas Quantum Engineer will NOT operate an Atlas Gold Series locomotive equipped with a LokSound Select decoder on an analog (DC) layout. However, the sound and lighting functions of the LokSound Select decoder in the Atlas Gold Series RS-1 locomotive can be controlled by an easy-to-use basic DCC system
  • Also note that on a DC-powered layout, a DCC and sound equipped locomotive (such as the Atlas Gold Series RS-1) CANNOT be consisted with another locomotive that does not also have both DCC and sound. (This statement does NOT apply to DCC-equipped locomotives operating on a DCC layout.)
  • Over 20 sound effects are available, including engine start-up and shutdown, prime mover sounds through all eight notches, bell, air horn, air compressor, dynamic brakes and more
  • There are 16 user-selectable horns, 2 user-selectable bells, and 2 user-selectable synchronized brake squeals
  • Manual and Automatic Notching modes with the ability to change modes ”on the fly” are provided for true realism






$289.95 US
