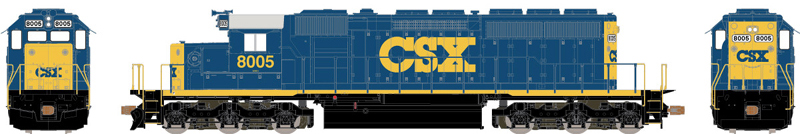

Operator HO Scale EMD SD40-2

Starting at just $99.99, the Operator HO Scale SD40-2 is designed for modelers who enjoy running dimensionally accurate trains and are less concerned about factory applied detail parts. The Operator SD40-2 is based upon the Rivet Counter SD40-2 body and mechanism.

History

     In January 1972, Electro-Motive Division (EMD) of General Motors would build the first production models of a locomotive design that would prove to be legendary: the SD40-2. The flagship of the “Dash-2” series of 1972, the SD40-2 would build upon the lessons learned from its predecessor, the SD40. While
the sixteen-cylinder 645E3 turbocharged prime mover remained the same from its SD40 cousin, the SD40-2 boasted a modular, solid-state electrical system,
which featured removable “cards” in place of troublesome relays in its high-voltage cabinet, greatly simplifying electrical troubleshooting and repairs.
     Externally, the biggest change was the use of the new HT-C three-axle truck in place of the Flexi-coil C of the SD40. The new truck promised greater adhesion, and was longer than the Flexi-coil C, necessitating an increase of the length of the SD40-2s frame to an overall length of 68’, 10” over the couplers.
This also had the effect of giving the SD40-2 its characteristic long walkway “porches” at each end. Other small external improvements, such as longer battery
box compartments, rear overhang on the cab roof, and drip rail over the front cab door, added to the list of external differences between it and the SD40.
     Domestic production of the SD40-2 continued until July 1984 making it one of EMD’s most popular locomotives of all time. Many remain in service today,
both with original owners as well as secondhand operators. Within the last five years, Norfolk Southern and CSX have rebuilt hundreds of SD40-2s to extend
their operating life. This will ensure this venerable locomotive’s presence on U.S. rails for decades to come.

ALL OPERATOR FEATURES
    Operates on Code 70, 83 and 100 rail
    Packaging safely stores model
    Color matched to Tru-Color Paint colors whenever possible
    Printing and lettering legible even under magnification
    Available with ESU-LokSound DCC and sound pre-installed
    Operates in both DC and DCC
    Pre-drilled for grab irons, coupler cut levers, MU cables, etc. - available in a separate upgrade kit (SXT80254)
    Minimum radius: 18”
    Recommended radius: 22”

CSX Prototype Specific ScaleTrains

    All-new model
    Fully assembled
    Three (3) different road numbers
    Directional LED headlights
    LED lighted number boards
    Dimensionally accurate truck centers
    Front anticlimber
    88" low short hood with brakewheel
    Standard-range dynamic brake with batten strip
    See-through dynamic brake intakes with resistor grid detail
    Corrugated radiator intake grilles
    Sectioned treadplate detail on the walkways
    3,000 gallon fuel tank
    Welded ECAFB
    "Tab-style" EFCO
    Semi-scale ScaleTrains.com Type E knuckle couplers
