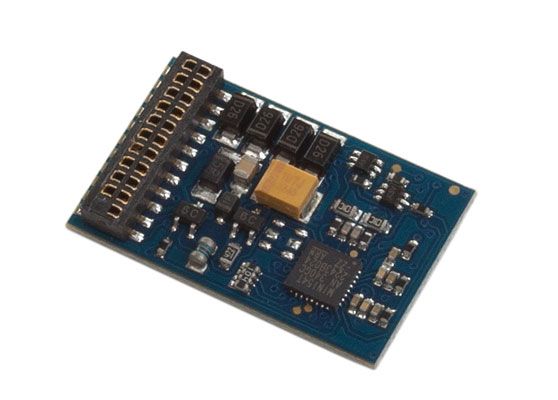

This is a simple full function decoder ideal for upgrading DCC Ready units. It is perfect to consist with other locomotives equipeed with LokSound decoders. Decoder includes 21MTC interface, 4 amplified outputs & 2 logic outputs. Size: 25.5mm x 15.5mm x 4.5mm (Version PluX12: 14.5 x 8.3 x 2.4mm)

Operational Modes:

• NMRA/DCC with 14, 28 and 128 speed steps, DCC RailCom
• DCC 2-digit and 4-digit addresses (long and short addresses)
• Analog DC (de-selectable)
• Automatic recognition of operational mode and DCC speed selection
• Supports Lenz LG100, Roco braking section
• Switching speed and acceleration & deceleration key selectable
• RailComPlus automatic detection by the command station

Throttle:

• 0.9 A continuous load
• Runs DC and coreless motors
• Silent, safe 20 kHz pulse width frequency motor regulation
• Motor output overload protection; Back EMF (de-selectable)

Function Outputs:

• 4 outputs
• 21MTC connector version has two additional logic outputs
• 250mA load per output
• 500mA total load of all function outputs short-circuit-proof
• Free function allocation (function mapping)
