ANE Smart Switch Set A001

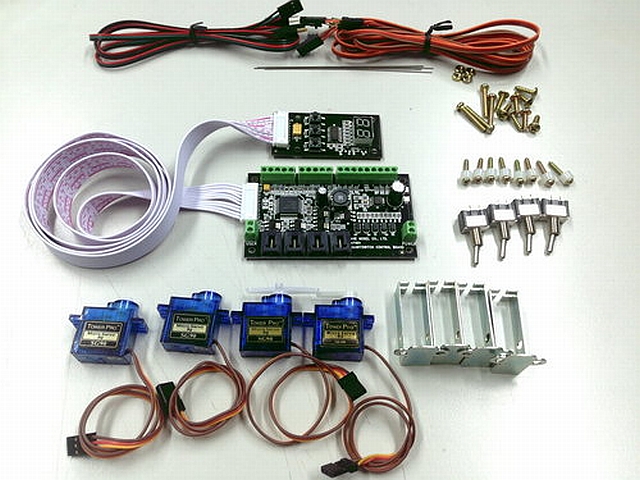

Consists of:

► AP014 Smart Switch Board
► 4 Servo Motors
► AP015 SmartSwitch hand control board
► Cables and mounting hardware

Product Features

• Easy to install.Built-in drilling template.
• Dual operation modes: Dispatch mode and Switch mode. (with toggle switch or push button switch).
• Remote encoding technique: Improved user friendly fully adjustable “hand throttle”.
• * Our hand throttle can adjust/change the switching speeds of a servo, the switching angles of a servo, the operation modes and the reset function.
• Two LED displays in the hand throttle.
• Improved servo silent function for analog servos.
• Virtual center line for easy trouble free mounting.
• Minimal structural interference---the servo and its mounting linkage are compact in size.
• More mounting possibilities---traditional, off-center or horizontal rotary installation. The servo can be installed either below the road bed or next to the turnout.
• Adjustable servo speed and position through the programming features in the SmartSwitchTM control board to give you ultimate control for pressing the point rails against the stock rails.
• Each control board can control up to four turnouts.
• Can simultaneously control one or up to four servos by using one toggle switch or push button.
• Remember the turnout positions when power is off.
• Provides various settings for indication and signal light.
• Low current draw. 9V is the minimum requirement for the input power supply.

The SmartSwitchTM gives you the ultimate flexibility.
