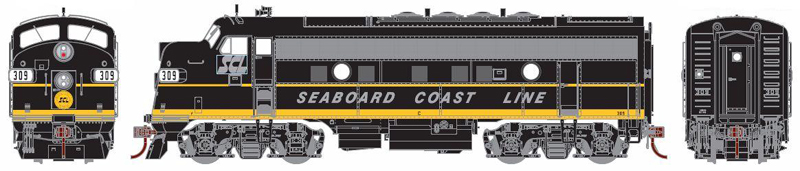

Athearn Genesis - HO Scale - F9A Tsunami Sound/DCC - Seaboard Coast Line (SCL) - #309 - Black, Yellow Stripe & Lettering (SKU 141-22653-run2)
Available On: December 1, 2015

MODEL FEATURES:
“A” and “B” units are powered
Detailed battery box and air tank with brackets
Speed recorder located on the left front axle
Scaled from prototype resources including drawings, field measurements, photographs, and more
Fully-assembled and ready-to-run
Accurately-painted and printed paint schemes
Coupler cut levers
MU hoses
Trainline hose
Windshield wipers
See through cab windows
Full cab interior
Lift rings
Wire grab irons
Detailed fuel tank with fuel fillers, fuel gauges, breather pipes, and retention tanks
Sander lines
Body mounted McHenry scale knuckle couplers - Kadee compatible
DCC-ready features Quick Plug™ plug-and-play technology with both 8- and 9-pin connector
Genesis driveline with 5-pole skew wound motor, precision machined flywheels, and multi-link drivetrain for trouble free operation
All-wheel drive with precision gears for smooth and quiet operation
All-wheel electrical pickup provides reliable current flow
Wheels with RP25 contours operate on Code 70, 75, 83 and 100 rail
Incandescent bulbs for realistic appearance
Bidirectional constant lighting so headlight brightness remains constant
Heavy die-cast frame for greater traction and more pulling power
Packaging securely holds for the model for safe storage
Replacement parts available
Minimum radius: 18"
SOUND EQUIPPED MODELS ALSO FEATURE:
Onboard DCC decoder with SoundTraxx Tsunami decoder pre-installed
Sound units operate in both DC and DCC
Individual sound boards installed in both A and B units (sound units only)
Engine, horn, and bell sounds work in DC
Some functions are limited in DC
All functions NMRA compatible in DCC mode
Slow speed control
Program a multiple unit (MU) lashup with lead unit only horn, bell, and lights
Lighting effects such as beacons, Gyralight where prototypically accurate
Many functions can be altered via Configuration Value (CV) changes
CV chart included in the box
________________________________________________
SCL
ROADNAME SPECIFIC FEATURES:
Road number 309 F9A
Cooling coil
Nose access doors cover retractable lifting lugs
Windshield gasket
Round corner cab doors
Enlarged cab windows
Shortened drip strip
Nathan M5 air horn
Firecracker antenna
Vertical louvers
Farr grilles
Slotted sand fill doors
End door frame
Round end door window
Road number 339 F3A
No windshield gasket
Square corner cab doors
Standard cab windows
Full length drip strip
Two single chime airhorns
Round base whip antenna
Horizontal louvers
Farr grilles
Knob sand fill doors
Roof end overhang
Square end door window
Road number 351 F7A
Nose access doors cover retractable lifting lugs
Windshield gasket
Round corner cab doors
Standard cab windows
Shortened drip strip
Two single chime airhorns
Round base whip antenna
Horizontal louvers
Horizontal grilles
Knob sand fill doors
Roof end overhang
Square end door window
Road number 405A F7A
Windshield gasket
Round corner cab doors
Enlarged cab windows
Eyebrow grab irons
Shortened drip strip
Nathan K3L air horn
Round base whip antenna
Horizontal louvers
Farr grilles
Knob sand fill doors
End door frame
Round end door window
Road number 399B F7B
SCL initials on the cab side applied to an etched metal plate
Farr grilles
Knob sand fill doors
Non dynamic brake
Low profile radiator fans
Cut skirts
End door frame
Round end door window
