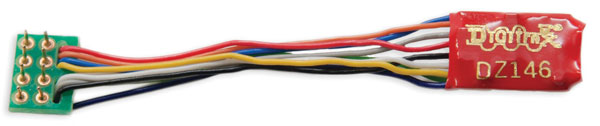

Digitrax - Z Scale - Mobile Decoder - DCC - Motor/Function Decoder (Replaces DZ143PS) (SKU 245-DZ146PS)

  Digitrax





  • 4 FX3 Functions
  • .55” x .4” x .148”
    14mm x 10.23mm x 3.77mm
  • Replaces DZ143PS




Fits Many DCC-Ready Z, N and HO Scale Locomotives

·        Size: .55” x .4” x .148”
14mm x 10.23mm x 3.77mm

·        Z/N/HO Scale

·        1.0 Amp/1.5 Amps Peak

·        4 FX3 Functions, 0.5 Amp

·        DCC Medium Plug with 1 ‘ Harness







·        FX3 Function outputs for prototypical lighting effects and on/off control:
Constant Brightness Lighting with directional or independent control.
Optimized selectable LED or incandescent lamp operation
Realistic Effects like Ditch lights, Mars lights, strobes, and many more
Configurable Pulse Function available on all function outputs.
FX3 & Standard Function Qualifiers operate functions based on direction,
F0 on or off, direction and F0, and whether loco is moving.
Function Mapping for custom function setup.
Master Light Switch turns off all lights & functions with one keystroke.
Advanced Consist Function Controls.

·        Digitrax LocoMotion® System-Your locomotives look like the real thing.
The Digitrax LocoMotion System makes them run like the real thing, too!
Scaleable Speed Stabilization (Back EMF) with simple setup & 256 level resolution.
Torque Compensation.
128 Speed Step operation (14 or 28 steps can also be used).
Momentum with acceleration and deceleration.
Normal Direction of Travel is user selectable.
Switching Speed feature for easier and faster access to yard speeds.
3 Step Speed Tables set start, mid and max voltage for custom control.
28 Step Speed Tables with 256 level resolution for precise control.

·        Program CVs using any Digitrax Compatible Control system without havingto buy any extra equipment.

·        Plug ‘N Play 8-pin Medium DCC plug design makes installation quick and easy.

·        2 Digit and 4 Digit Addressing.

·        Basic, Advanced & UniVersal Consisting.

·        SuperSonic motor drive for silent operation.

·        Direct mode programming.

·        Decoder Reset CV with or without speed table reset.

·        Transponder Equipped ready for transponding on your Layout.

·        Motor Isolation Protection helps prevent damage to your decoder.

·        Automatic Analog Mode Conversion when running on DC layout.

·        Decoder Lock for individual programming of multiple decoders in one loco.

·        Digitrax “No Worries” Warranty.

Specifications

  • Size: 0.55” x 0.4” x 0.148” (14 mm x 10.23mm x 3.77 mm)
  • Installation – DCC Medium Plug Short Harness
  • Function Outputs – 4
  • Function  Type – FX3
  • Current Rating-Functions – 0.5 amp for all functions





















FX3

CV#

Function #

Output Color

CV49

F0/Light Forward (F0F)

White

CV50

F0/Light Reverse (F0R)

Yellow

CV51

F1 Function 1

Green

CV52

F2 Function 2

Violet

CV113

F3 Function 3

Brown

CV114

F4 Function 4

White/Yellow

CV115

F5 Function 5

White/Green

CV116

F6 Function 6

White/Blue









FX3 CV   value second digit (hex)

FX3 effect generated

x0

No effect, normal function control of lead

x1

Random flicker

x2

Mars light

x3

Flashing head light

x4

Single pulse strobe

x5

Double pulse strobe

x6

Rotary beacon simulation

x7

Gyralite

x8

Rule 17 dimmable headlight, dim   when F4 is active or locomotive direction is opposite normal direction of   travel (NDOT)

x9

FRED or "end of train" light

xA

Right ditch light on when loco is running forward and F0 is   on.  When F2 is on, the right ditch   light flashes alternately with the left ditch light to simulate ditch light   operation at a grade crossing.

xB

Left ditch light. on when loco is running   forward and F0 is on.  When F2 is on,   the left ditch light flashes alternately with the right ditch light to   simulate ditch light operation at a grade crossing.

xC-xF

Digitrax reserved for effects expansion.







FX3 CV   value first digit (hex)

How the FX3   effect generated will work

0x

Forward direction, ON with function ON, effect phase A

1x

Reverse direction, ON with function ON, effect phase B

2x*

Non directional effect, ON with function ON, effect phase   A

3x*

Non directional effect , ON with function ON, effect phase   B

4x* Master Light Switch F0

Forward direction, ON with F0 ON & function ON, effect phase A

5x* Master Light Switch F0

Reverse direction, ON with F0 ON & function ON, effect phase B

6x Master Light Switch F0

Special Logic for Fwd Ditch Light or Rule 17 dimming    Standard Ditch Light Operation

7x Master Light Switch F0

Special Logic for Rev Ditch Light or Rule 17 dimming    Standard Ditch Light Operation

FX3 CV value first digit (hex)

How the FX3   effect generated will work

Ax

Speed=0, non directional effect, phase A and function   qualifier

Bx

Speed>0, non directional effect, phase B and function   qualifier

Ex Master Light Switch F0

Ditch off phase A  Alternate Ditch Operation-Off when running flash on with   F2

Fx Master Light Switch F0

Ditch off phase B  Alternate Ditch Operation-Off when running flash on with   F2



























Meaning

Recommended

CV# & CV Value

dec/hex

Effect on Decoder

Analog Functions Enable/Disable

(Not applicable for FX3)

13: 207/xcF

All functions F0 though F4 are ON in analog (DC) mode

Configuration Register

29:006/x06

Advanced 28/128 speed step mode, analog mode conversion   enabled

Keep Alive/Rate

62:196/xc4

High keep-alive for lamps, Rate 4 for approx. 1 sec FX   effect rate

Ditch Light Hold Over Time

63:064/x40

5 Sec Ditch light holdover after F2 is turned OFF



Function/

Color

CV# &CV Value

 dec/hex

FX3   Effect Generated

F0 Fwd White

49:104/x68

Rule 17 dimmable headlight,   directional

F0 Rev Yellow

50:000/x00

Normal directional reverse headlight, NO effect used

F1 Green

51:106/x6A

Right Ditch light, directional.  F0 & F2 must be ON for this to operate.

F2 Violet

52:107/x6b

Left Ditch Light, directional.  F0 & F1 must be ON for this to operate.

F3 Brown

113:034/x22

MARS light, ON when F3 is   ON  (If we used {113:050/x32} we would   get opposite phase MARS light)











Static CV value

How The Static Function   Output Will Work

000/x00

On/Off   Output controlled by function map

016/x10

On/Off   Output controlled by function map

032/x20

Forward   qualified On/Off Output

048/x30

Reverse   qualified On/Off Output

064/x40

F0   qualified On/Off Output (Master Light Switch F0)

060/x50

F0   qualified On/Off Output (Master Light Switch F0)

096/x60

F0   On in Forward Direction qualified On/Off Output (Master Light Switch F0)

112/x70

F0   On in Reverse Direction qualified On/Off Output (Master Light Switch F0)

160/xA0

Speed=0,   non directional qualified On/Off Output

176/xB0

Speed>0,   non directional qualified On/Off Output















Features:

  • Series 6
  • Current Rating-Functions 0.5 Amp for all functions
  • Original Release Date 3-4-2014
  • Current Rating 1.0 Amp/1.5 Amps Peak
  • Warranty (no worries warranty)







Click Here to View Digitrax Video Tutorials







$42.00 US
