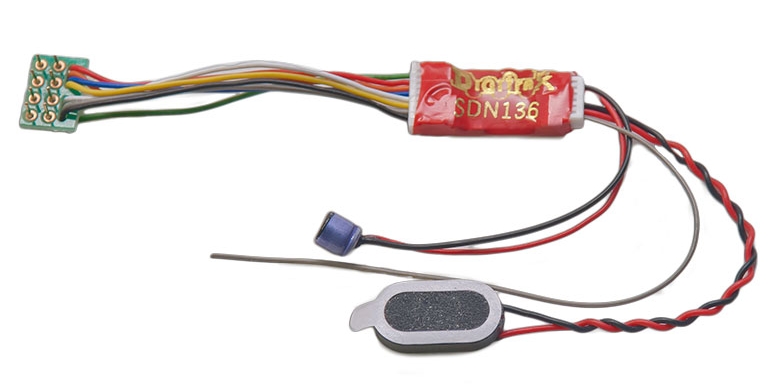

SDN136PS Standard 1 Amp Sound Decoder N Scale

Standard 8 Bit Sound at an Economical Price!

•Works for N and HO models
•Wired 8Bit Customizable SoundFX Decoder
•3 Simultaneous Voices
•Selectable Generic Diesel & Steam Sounds
•Downloadable Sound
•4 Megabit onboard sound memory
•1.0 x 0.41 x .19 in. (25.6 x 10.46 x 4.93 mm)
•8 Ohm 10 x 18 mm oval speaker
•100uF Capacitor
•Accepts PX112-6 Power Xtender
•1.0 Amp/2.0 Amps Peak Motor Current Rating
•3 FX3 Functions-500mA Total Function Current Rating
•FX3 optimized for LEDs or lamps
•New Series 6 Features

Specifications

Current Rating-Motor: 1.0 Amps/2.0 Amps Max
Size: 1.0 x 0.41 x .19 in. (25.6 x 10.46 x 4.93 mm)
Installation: Wired
Function Outputs: 3
Function Type: FX3
Features: Series 6
For Use With: PX112-6 Power Xtender
Current Rating-Functions: 500 mA
Speaker: 8 Ohm 10 x 18 mm oval speaker
Capacitor: 100uF Capacitor
Simultaneous Voices: 3
Onboard Sound Memory: 4 megabit
Sound Projects Supported: 8 bit sound projects
