DECODER FEATURES:
� Compatible with the NMRA DCC Standards and Recommended Practices
� Supports 7 bit address modes for compatibility with 'simple' systems
� Programmable acceleration, deceleration, starting voltage
� Supports 14 bit address modes for addressing any Loco number up to 9,999
� Supports programming on the main

THROTTLE FEATURES:
� Supports 14, 28, and 128 speed step modes
� Speed interpolation provides smooth 128 speed step response in any mode
� Programmable acceleration, deceleration, starting voltage
� 7 bit consist addressing
� 15 pre-programmed speed tables and 1 user programmable speed table
� High Frequency Silent Motor Drive
� Load Compensation

SOUND FEATURES:
� High quality digital sound
� Individual, adjustable volume controls
� One watt audio amplifier
� Polyphonic Sound Processor
� 16-bit Audio Processing
� Playable Whistle
� 7-band Audio Equalizer
� Reverb

LIGHTING FEATURES:
� 15 Lighting effects supporting �Rule 17� or automatic direction control

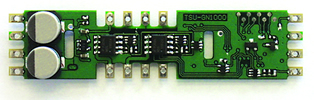

Model TSU-GN1000 Specifications

Motor Stall Current: 1.00 AMP Maximum
Function Outputs: 4
Function Current: 100mA (each output)
Audio Amplifier: 1 Watt, 8 ohm load
