CGW Chicago & North Western in the 1979 and 1980 "Clinton Shops (Iowa - green) repaint scheme.  Tangent has selected three car numbers with individual Clinton, Iowa repaint dates on the side - collect all three of these former CGW cars!  These cars served CNW in various services including various grains and sand service.  Our models include the railroad-specific detail of pneumatic outlet gates!  These cars served UP after the CNW acquisition, lasting well into the 2000s.

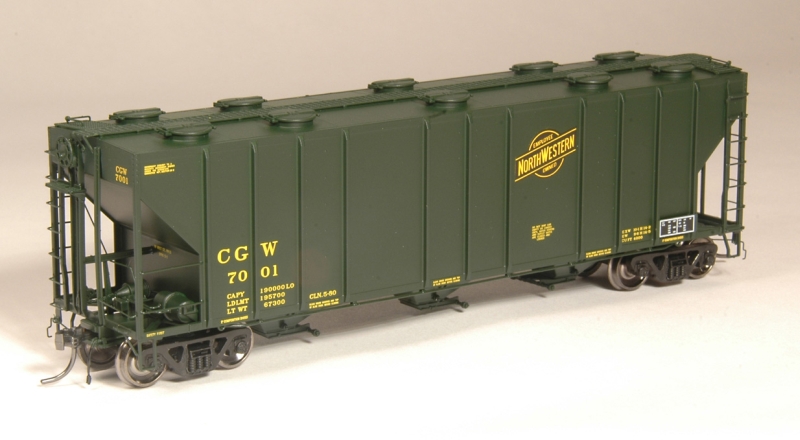

Car 01  #7001
Car 02  #7022
Car 03  #7024

Pullman-Standard PS-2CD 4000 cubic foot covered hopper - Summary:

• The “2” in PS-2CD - designates the car is a covered hopper. A “1” was Pullman's designation for boxcars.
• The “CD” refers to “Center Discharge”, which is the type of discharge gates underneath the car. Hoppers that empty underneath the center of the car are center discharge, and hoppers that empty to the sides are referred to as “side discharge,” or SD.
• 4000 refers to the cubic foot capacity of the car, or how many cubic feet of bulk product can be loaded into the carbody.

The PS-2CD 4000 was the first covered hopper larger than 4000 cubic feet in size, which was an engineering achievement when first released in 1962. .  Pullman produced this version of the 4000 from 1962 to 1964, and it became the new benchmark for covered hopper design. The PS-2CD 4000 featured a “low-side” design where the car sides cover most of the outlet bays. Most of the production included ten round hatches in the carbody roof for commodity loading, although some roads opted for trough hatches, one of the first such applications on a covered hopper. While most roads opted for gravity only outlet gates, some railroads opted for both gravity and pneumatic outlet gates. Contrast the 4000's “low-side” design with the later design found on our “sister” Pullman-Standard prototype model, the PS-2CD 4740 hopper, which included a “high-hip” design.

The earliest PS-2CD 4000 Hoppers were delivered from Pullman-Standard's Butler, PA manufacturing plant in March 1962, painted in NKP black. Pullman built roughly 2,000 copies of the PS-2CD 4000, with only minor detail and appliance changes along the way. The Tangent Scale Models replica will cover virtually all PS-2CD 4000 production changes through the 1962 to 1964 period.
