SKU: 1484 T1 decoder with built in resistors for LED's. The onboard current limit resistors connected in series allow for LED installations with NO EXTERNAL RESISTORS for F0F and F0R (Use the standard T1 if your locomotive already has series connected current limit resistors for LED’s)! All other features are standard including auto adjusting BEMF.

An HO scale decoder a 9 pin socket. This decoder can be hardwired, plugged straight into some locomotives, or connected to the 8-pin NMRA sockets using a variety of the available harnesses. This decoder includes current limit resistors on both function outputs so there is no need for external resistors when using LED’s. Provides 1.3 amp continuous and 2 amp peak draw. The T1 features TCS exclusive auto-adjusting BEMF.

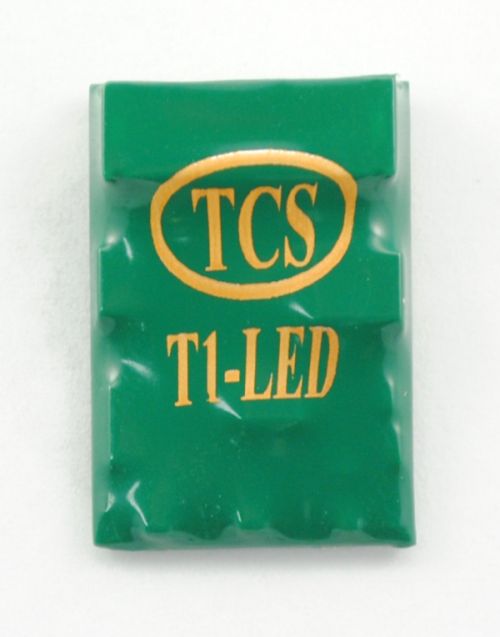

The T1-LED is a motor control decoder with two lighting functions (headlight and reverse light)

Dimensions: 0.661” x 0.969” x 0.193” or 16.79mm 24.61mm 4.9mm

This full featured, 2 function, hardwire or harnessed decoder is a robust workhorse, capable of taking almost anything you can throw at it. This decoder includes current limit resistors on both function outputs so there is no need for external resistors when using LED’s. Included is our auto-adjusting BEMF for outstanding slow speed performance and hassle free set up. Also includes Quiet Drive for super quiet engine performance.

Main Features of this Decoder

• Back EMF Load Compensation for superior slow speed control even with heavy loads.
• Onboard Resistors for LED’s No more hassling with external resistors for LED’s!
• Quiet Drive creates SUPER QUIET engine performance.
• Autodetect for realistic throttle response when using DC power.
• Dimmed Brightness of bulbs or LEDs is adjustable.
• Variable Momentum lets you make custom acceleration curves.
• Mars, Gyra, and Rotary Beacon are adjustable.
• Decoder Lock for programming same address decoders independently.
• Function Remapping: 13 buttons for most lights, 7 buttons for operations.
