Train Control Systems - N Scale - Decoder - K0D8-D - 8 function drop-in decoder with BEMF & Quiet Drive for Kato engines: E9B, F3B, F7A, F7B, PB1 - NO Onboard LEDs as it is designed for B Units (SKU 745-1339)

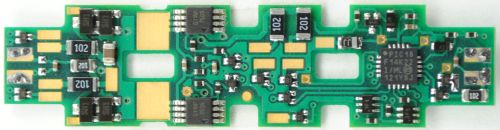

SKU: 1339 The K0D8-D is a drop-in decoder for Kato N Scale engines: E9B, F3B, F7A, F7B, PB1. It has 8 functions with built-in onboard resistor for LEDs. This decoder has NO ONBOARD LEDs because it is designed for locomotives with no lights (B Units).

Note: Four of the functions (F1-F4) have onboard resistors for LEDs and 1.5v bulbs. The remaining two hardwire functions (F5-F6) output at 12v and will need external resistors if you plan to use LEDs or 1.5v bulbs. Included is our auto-adjusting BEMF for outstanding slow speed performance and hassle free set up. Also includes Quiet Drive for super quiet engine performance.

1 Amp motor drive 2 Amp peak.

Dimensions: 2.53”x0.542”x0.155” or 64.26mm x 13.766mm x 3.937mm






$39.95 US
Country of Origin: United States
