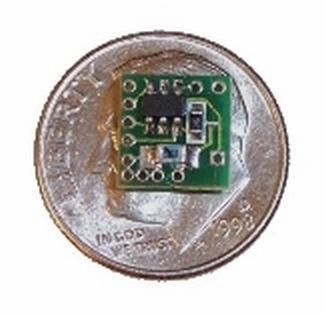

Smaller than any decoder at just .31" x .31" x .118" and utilizing the industry's smallest microcontroller and associated voltage control circuitry, the total module consumes less than 500 micro Amps (<1/2 ma). Typical peak operating current for these modules with LED(s) attached and running through full brightness curves range from 18-38 ma.

This makes them ideally suited for operation when powered directly by a function output of any of today's HO, N or Z-scale DCC decoders. Designed specifically to provide truly realistic lighting effects for 20ma LEDs, these modules include input protection against reverse polarity.

Input voltage range 6-18 volts DC, so they'll work with nearly every layout environment. On-board current limiting resistor. Extra input wires included.

Provides output for two LEDs, both on, then switches to alternating with realistic ramping of intensity when input is momentarily grounded (or activated by DCC function control). Re-grounding input returns LEDs to both on. Extra limiting resistors included.
