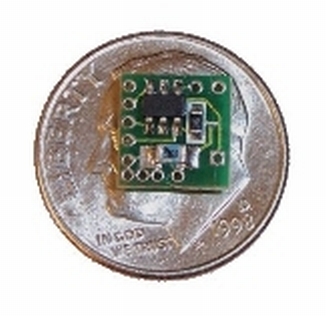

Smaller than any decoder at just .31" x .31" x .118" and utilizing the industry's smallest microcontroller and associated voltage control circuitry, the total module consumes less than 500 micro Amps (<1/2 ma). Typical peak operating current for these modules with LED(s) attached and running through full brightness curves range from 18-38 ma.

This makes them ideally suited for operation when powered directly by a function output of any of today's HO, N or Z-scale DCC decoders. Designed specifically to provide truly realistic lighting effects for 20ma LEDs, these modules include input protection against reverse polarity.

Input voltage range 6-18 volts DC, so they'll work with nearly every layout environment. On-board current limiting resistor. Extra input wires included.

This module produces a highly realistic Mars effect which is very eye-catching. Output intensity varies from dim to full-bright through a triple-pulse timed to imitate side (reflective) shine as well as frontal shine of the rotating Mars pattern.
