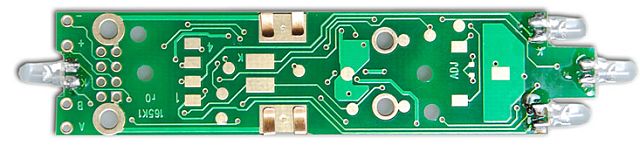

The DH165K1A 6 function FX3 decoder is designed to fit Kato SD40-2 locomotives and others. The DH165K0 is a 1.5/2 amp rated unit. FX3 accessory function outputs rated at .5 amps

Features:

• Accepts Plug-in SFX SoundBug sound modules
• Regulated Headlights:convenient no-resistor install of LEDs and lamps
• Torque Compensation for smooth as silk silent operation
• 128 Speed Step operation (14 or 28 steps can also be used)
• Momentum with acceleration and deceleration
• Normal Direction of Travel is user selectable
• Switching Speed feature for easier and faster access to yard speeds
• 3 Step Speed Tables set start, mid and max voltage for custom control
• 28 Step Speed Tables with 256 level resolution for precise control
• Scalable Speed Stabilization with simple setup & 1024 level resolution
• SuperSonic motor drive for silent operation
• FX3 Functions for prototypical lighting effects:
• Constant Brightness Lighting directional or independent control
• Realistic Effects like Ditch lights, Mars lights, strobes, and many more
• Dynamic and Static Qualifiers operate functions based on direction,
• F0 on or off, loco direction and F0, and whether loco is moving
• Function Remapping for custom function setup
• Master Light Switch turns off all lights & functions with one keystroke
• Advanced Consist Function Controls
• Circuit Board Replacement design makes installation quick and easy
• Transponder equipped ready for transponding on your layout
• Compatible with digital surround sound systems
• All Mode Programming with Operations Mode Read Back-read back CV values right on the mainline
• Decoder Factory CV Reset with or without speed table initialize
• Motor Isolation Detection prevents damage to your decoder
• Basic, Advanced & UniVersal Consisting
• 2 Digit and 4 Digit Addressing

Product Manual PDF

Click Here to View Digitrax Video Tutorials
