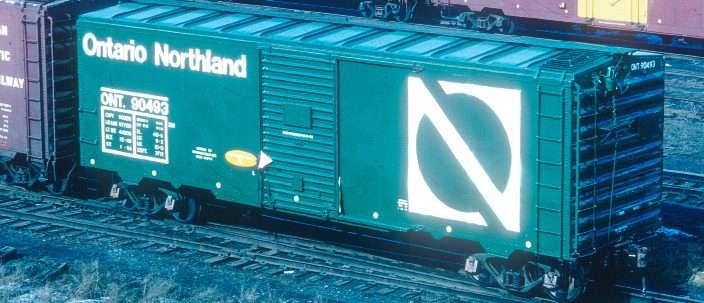

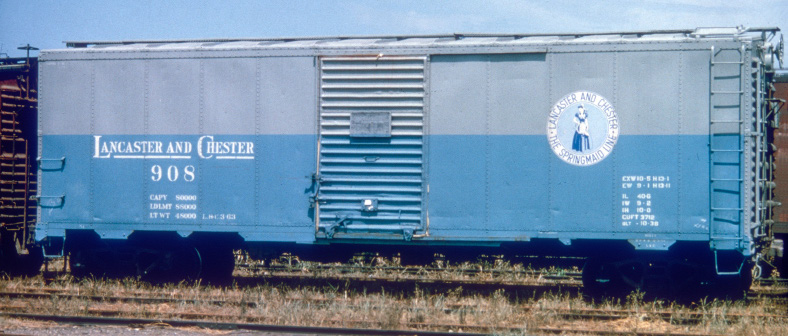

The 1937 AAR standard boxcar was one of the most widely pro­duced freight cars ever. From the start of production in 1936 nearly 94,000 cars were built for 64 railroads to variations of this design. Through various secondhand owners, rebuilds and upgrades they continued in service well into the 1980s.

At the core of the 1937 AAR boxcar was a body that was 40’-6” long and 10’-0” high inside. Over the years the design of the ends changed. Ends commonly used on early cars used a “Z”-shaped inside corner post, covered by an end with squared off corners. Later cars featured a “W”-shaped inside corner post which externally was cov­ered by an end with rounded corners. Additional types of ends were also employed, most notably by Canadian railroads. In fact, CN and CP accounted of more than 28,000 of these cars!

Roofs also varied from group to group, with the Murphy raised panel roof being the most common. However, many cars were also built with Viking and flat panel roofs as well. Other hardware variations included doors, ladders, running boards, brake wheels and trucks.

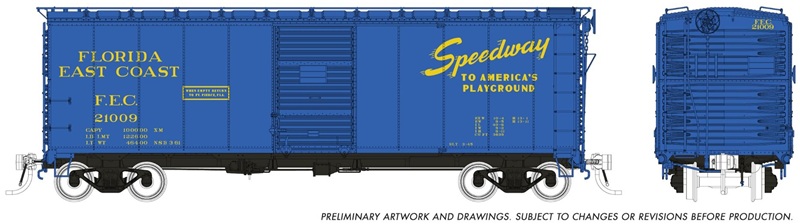

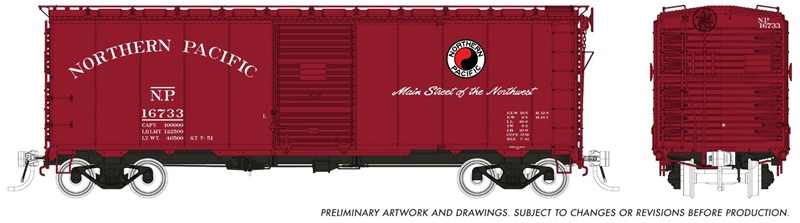

Rapido’s HO model includes numerous parts to model most possible combinations. Rapido’s cars include square and round post ends (with correct sides) as well as Canadian NSC-2 and 5/5 rib ends. Rapido have made Murphy raised panel, flat panel and Viking roofs with either wood or phot-etched steel running boards in multiple patters. Access to the roof is by seven or eight rung ladders. Canadian cars include ladders with integral sill steps. Youngstown and Superior 6’ doors are available, as are multiple styles of brake wheels and housings.

Rapido’s HO Scale 1937 AAR Boxcars Feature:

• Accurately scaled from prototype blueprints and photos

• Multiple end, roof and door variations

• Correct brake wheels and housings

• Correct running boards

• Full underbody detail

• Rapido semi-scale metal couplers

• Free-rolling trucks with turned metal wheels

• Accurate paint and decoration

• Multiple road numbers available for each paint scheme

Order Due Date: Available Now

Anticipated Delivery Date: December 2026
